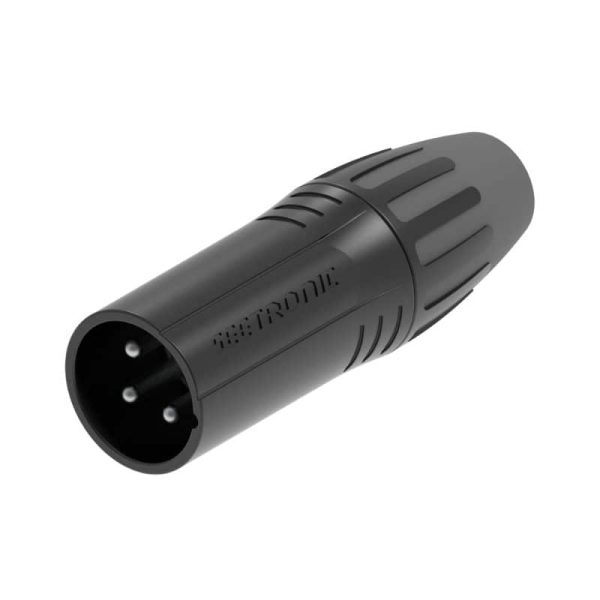

SCMM3-B 3 Pin XLR
$5.00
SCSF3-B XLR
Orijinal fiyat: $4.93.$4.68Şu andaki fiyat: $4.68.
-5%
SCMM5-B 5 Pin XLR
Orijinal fiyat: $5.80.$5.51Şu andaki fiyat: $5.51.
13
Uzman Desteği
Profesyonellerden rehberlik
Güvenli Ödeme
Nakit ve USDT kabul edilir
Mağazadan Teslim
Sipariş et, yerinden teslim al
ÜRÜN AÇIKLAMASI
SCMM5-B
Product Features
- 5-core XLR male cable connector with black plated housing and silver plated contacts
- The metal housing adopts internal thread design to ensure that it can withstand gravity under any site conditions
- Two cable clamps are provided for different cable diameters; black clamp 3.5-6mm; white clamp 6-8mm
- No ring design which is more compact and can save space
- Colored boots available for coding and identification
- The boot is equipped with a polyurethane sealing sleeve to prevent the cable from being affected by bending pressure to the greatest extent
Details
| Product Parameters | |
| Connection Type | XLR |
| Gender | Male |
| Electrical Parameters | |
| Capacitance between contacts | ≤ 7pF |
| Contact resistance | ≤ 3 mΩ |
| Dielectric strength | 1.5 kV DC |
| Insulation resistance | > 10 GΩ (initial) |
| Rated current per contact | 7.5 A |
| Rated voltage | < 50 V |
| Mechanical Parameters | |
| Cable O.D. | Black Strain relief: 3.5-6 mm |
| White Strain relief: 6-8 mm | |
| Insertion force | ≤ 20 N |
| Withdrawal force | ≤ 20 N |
| Service life | > 1000 mating cycles |
| Cable size | Max.1.0 mm² |
| Max.18 AWG | |
| Locking device | Latch lock |
| Material and Environmental Parameters | |
| Boot | PA |
| Contacts | Cu alloy |
| Contact plating | Ag |
| Insert | PA |
| Housing | Zinc alloy |
| Housing plating | Black |
| Strain relief | POM |
| Flame-retardant grade | UL 94 HB |
| Protection class | IP40 |
| Temperature range | -30°C ~ +80°C |
| Standards and Certifications | |
| Standards | IEC 61076-2-103 |
| Solderability | Complies with IEC 68-2-20 |
