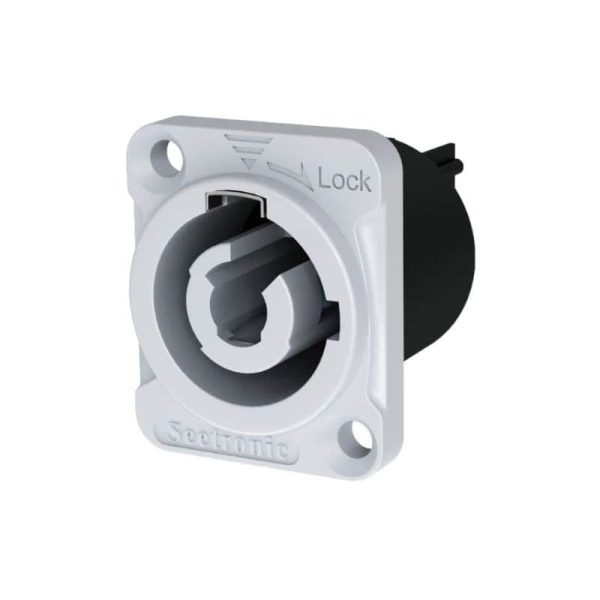

SAC3MPB Powercon Soket
Orijinal fiyat: $5.22.$4.96Şu andaki fiyat: $4.96.
SCMF3 3 Pin XLR
Orijinal fiyat: $5.00.$4.68Şu andaki fiyat: $4.68.
-5%
SAC3MX Powercon
Orijinal fiyat: $11.60.$11.02Şu andaki fiyat: $11.02.
16
Uzman Desteği
Profesyonellerden rehberlik
Güvenli Ödeme
Nakit ve USDT kabul edilir
Mağazadan Teslim
Sipariş et, yerinden teslim al
ÜRÜN AÇIKLAMASI

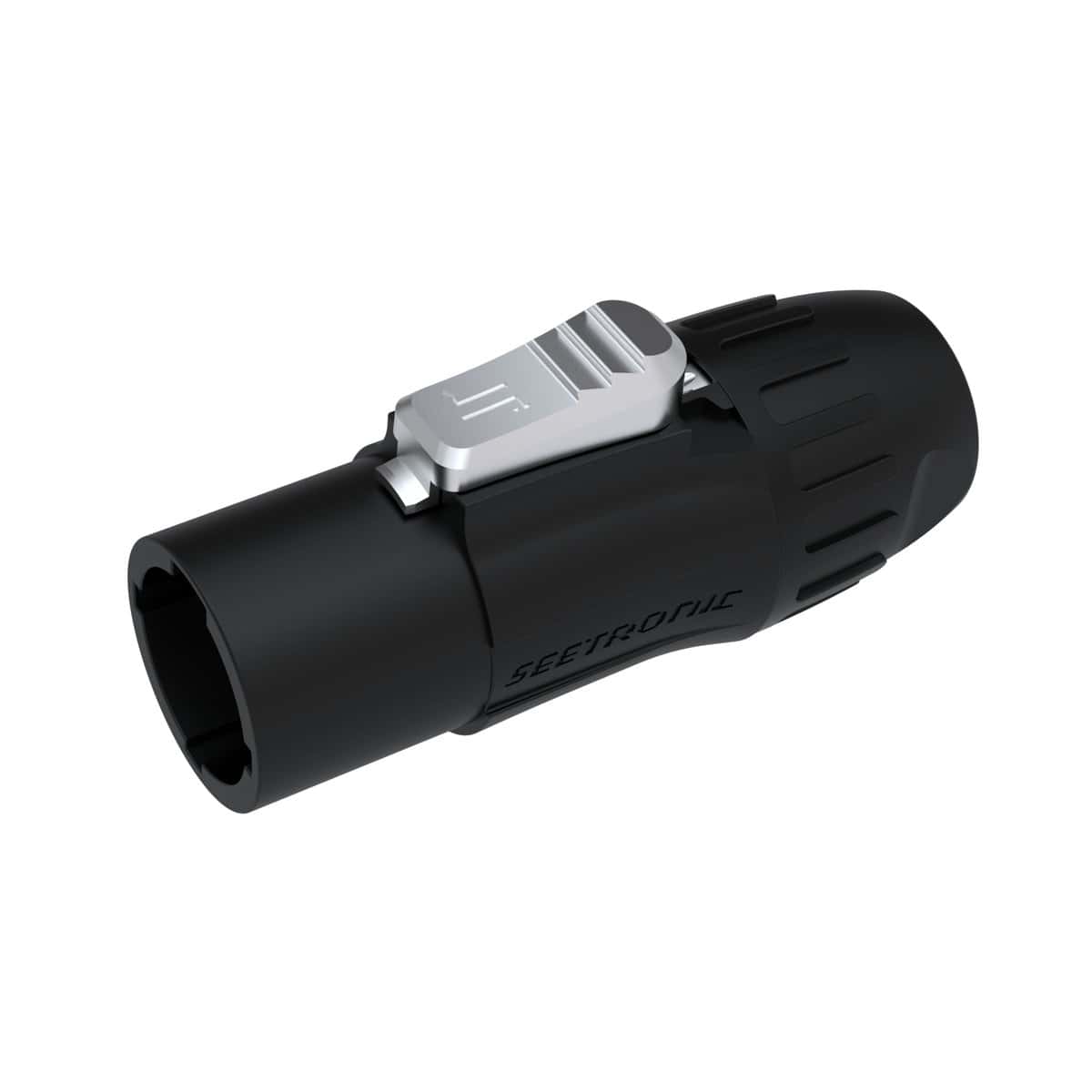

SAC3MX
Product Features
- Lockable three-core male power cable connector with contacts for line, neutral and pre-adapted safety grounding
- Used for electrical connection under outdoor conditions with protection grade IP65
- Match with SAC3FX plug or SAC3FPX / SAC3MPX-LY / SAC3FPX-20 socket
- Fast and easy locking system with firm latch lock which does not fall off
- High current capacity rated at 16A/250V AC VDE and 20A/300V AC UL
- UL498 & UL50E Certification No. E356932
- VDE Certification No. 40044166
Details
| Electrical Parameters | |
| Number of Contact | 2 + PE |
| Rated Current | 16A VDE / 20A UL |
| Rated Voltage | 250V AC VDE / 300V AC UL |
| Contact Resistance | ≤ 5 mΩ |
| Dielectric Strength | 4000V DC (1600V/min AC UL) |
| Insulation Resistance | > 1000 MΩ |
| Mechanical Parameters | |
| Service Life | > 1000 mating cycles |
| Cable Size | 2.5 mm2 |
| Cable OD | 7-11 mm |
| Type of Terminals | Screw type terminals |
| Material and Environmental Parameters | |
| Housing | PA |
| Contacts | Cu alloy |
| Contact surface | Ag |
| Protection degree | IP65 |
| Flame retardant rating | UL94-V0 |
| Temperature range | -30°C ~ +80°C |
| Standards and Certifications | |
| Standards | UL498 | UL50E | IEC61984 | IEC60320-1 | GB/T 34989 | 电気用品安全法(PSE) |
| Certifications | UL E356932 | VDE 40044166 | TUV AN505384450001 | CQC 23003410681 | PSE JET7938-43001-1001 |
