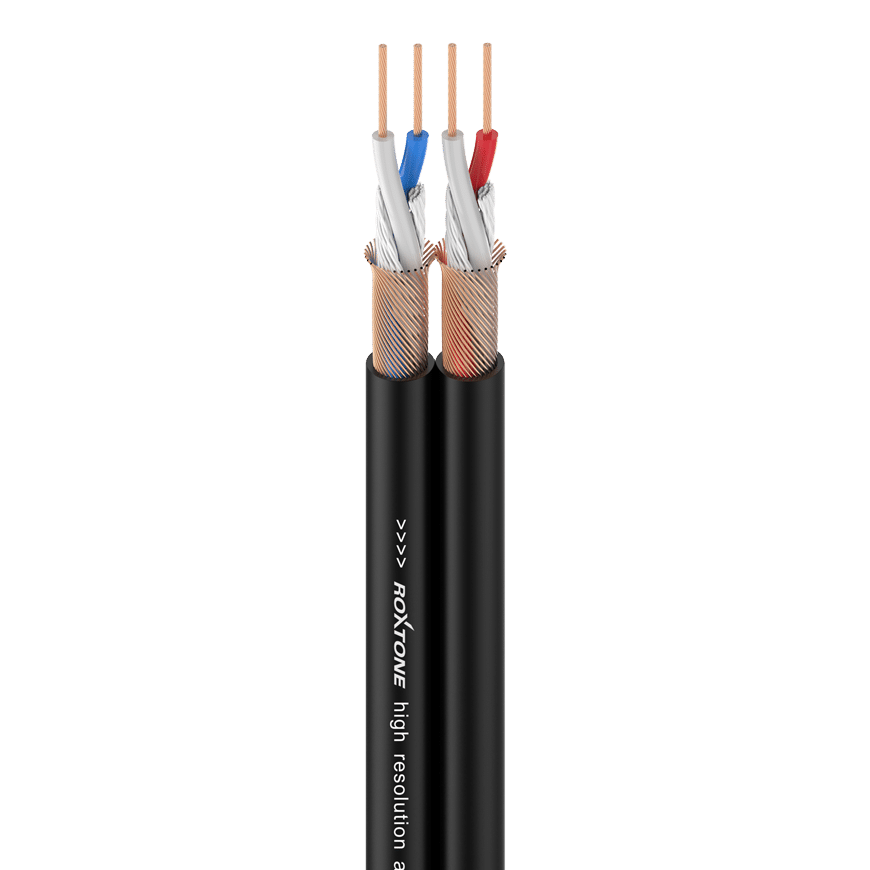

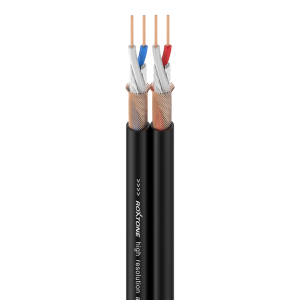

ÜRÜN AÇIKLAMASI
Features
• Very flexible due to the use of fine individual stranding
- Every conductor is insulated and individually shielded with copper spiral shielding
- Small jacket diameter, ensuring easy handling with XLR and jack connectors
Applications
• Cabling for balanced units
- Connection of HiFi-units
- Construction of Y-adapter cables
- Manufacture of insert cables
Cable Colour
• Black
• Blue

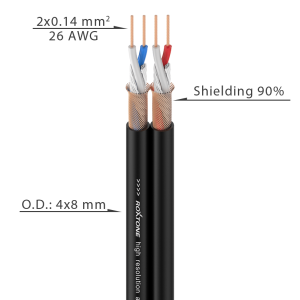

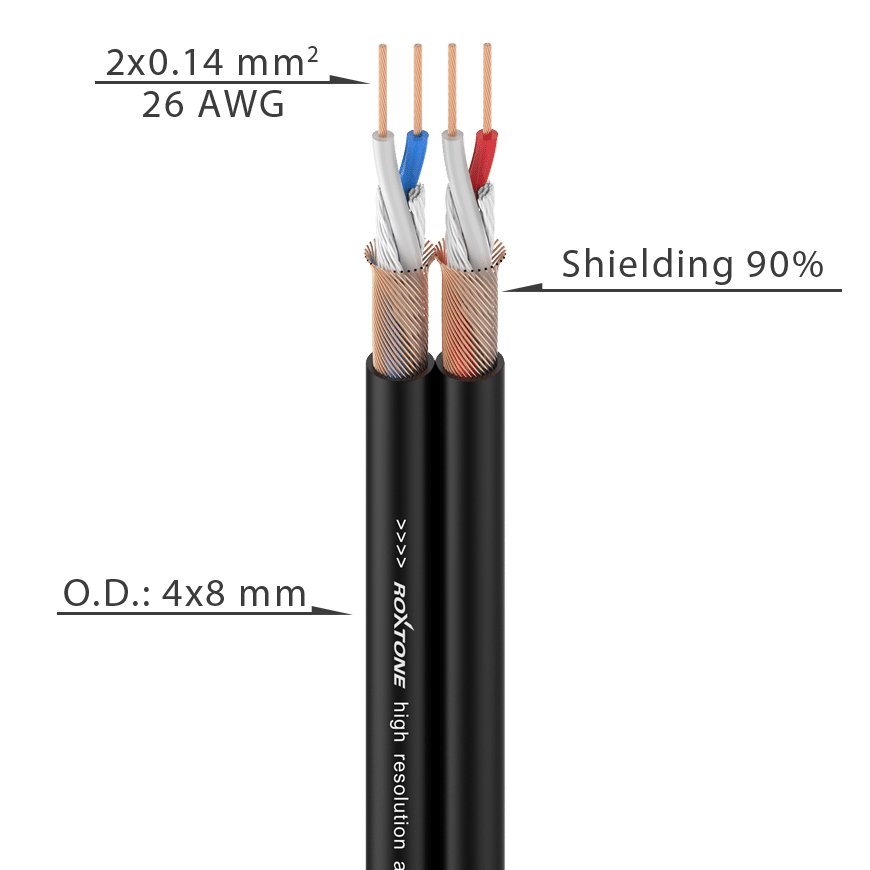

| Technical Data | |
| Jacket, diameter | PVC 4 x 8 mm |
| AWG | 26 |
| No. of inner conductors | 2 x 2 x 0.14 mm² |
| Copper strand per conductor | 18 x 0.10 mm |
| Conductor insulation | PE 1.2 mm |
| Shielding | copper spiral shielding |
| Shielding factor | 90 % |
| Temperature range | min.-20 °C |
| Temperature range | max.+70 °C |
| Packaging | 100/300 m roll |
| Electrical Data | |
| Capac. cond./cond. per 1 m | 50 pF |
| Capac. cond./shield. per 1 m | 100 pF |
| Cond. resistance per 1 m | 122 mΩ |
| Shielding resistance per 1 m | 50 mΩ |
