ÜRÜN AÇIKLAMASI
Features

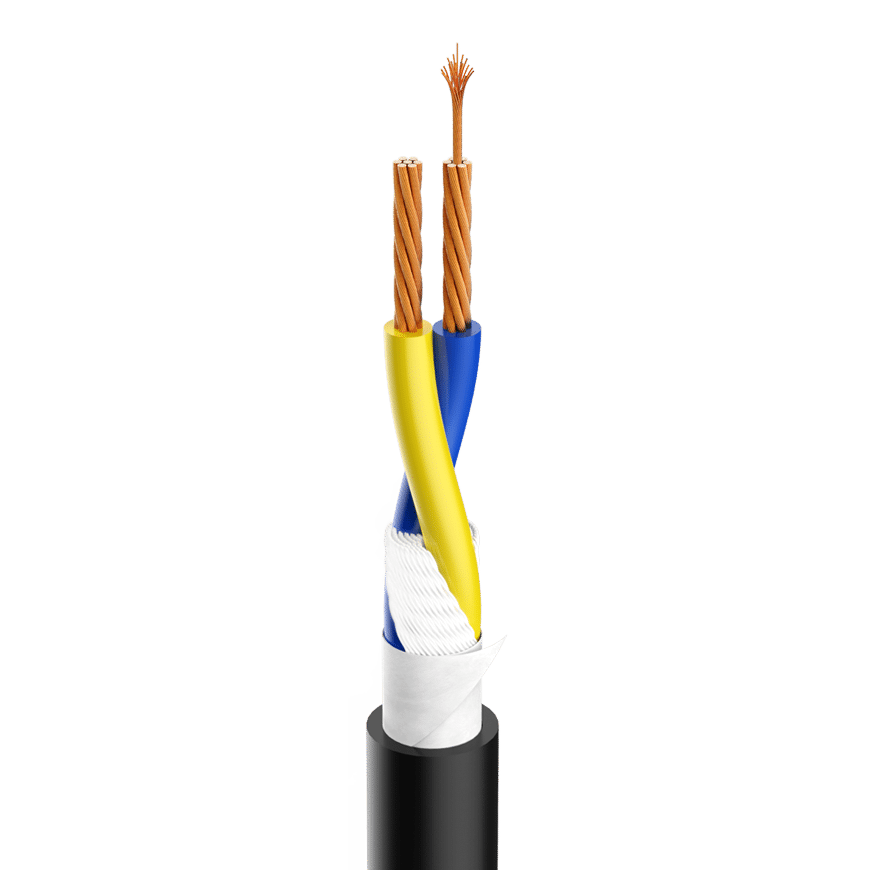

• The special double strands technology with very thin OFC wires ensure the cable to be super highly flexible
- Soft PVC jacket and inner conductors twisted grant a perfect winding
Applications
• All types of sound systems
- Wiring of HiFi-systems
- Mobile outdoor areas
Cable Colour
• Black
• Blue
| Technical Data | ||||
| Order Code | HFSC215 | HFSC220 | HFSC225 | HFSC240 |
| Jacket, diameter | PVC 8.5 mm | PVC 9.2 mm | PVC 9.5 mm | PVC 11.5 mm |
| AWG | 16 | 14 | 14 | 12 |
| No. of inner conductors | 2 x 1.50 mm² | 2 x 2.0 mm² | 2 x 2.5 mm² | 2 x 4.0 mm² |
| Copper strand per conductor | 192 x 0.10 mm | 255 x 0.10 mm | 318 x 0.10 mm | 511 x 0.10 mm |
| Cond. PVC insulation, diameter | 3.0 mm | 3.25 mm | 3.4 mm | 4.2 mm |
| Temperature range | min.-20 °C | min. -20 °C | min. -20 °C | min. -20 °C |
| Temperature range | max.70 °C | max. +70 °C | max. +70 °C | max. +70 °C |
| Packaging | 100/300 m roll | 100/300 m roll | 100/300 m roll | 100/300 m roll |
| Electrical Data | ||||
| Capac. cond./cond. per 1 m | 127 pF | 120 pF | 109 pF | 121 pF |
| Cond. resistance per 1 m | 11.5 mΩ | 8 mΩ | 6.6 mΩ | 3.9 mΩ |
